SONOFF NSPANEL PRO WHITE

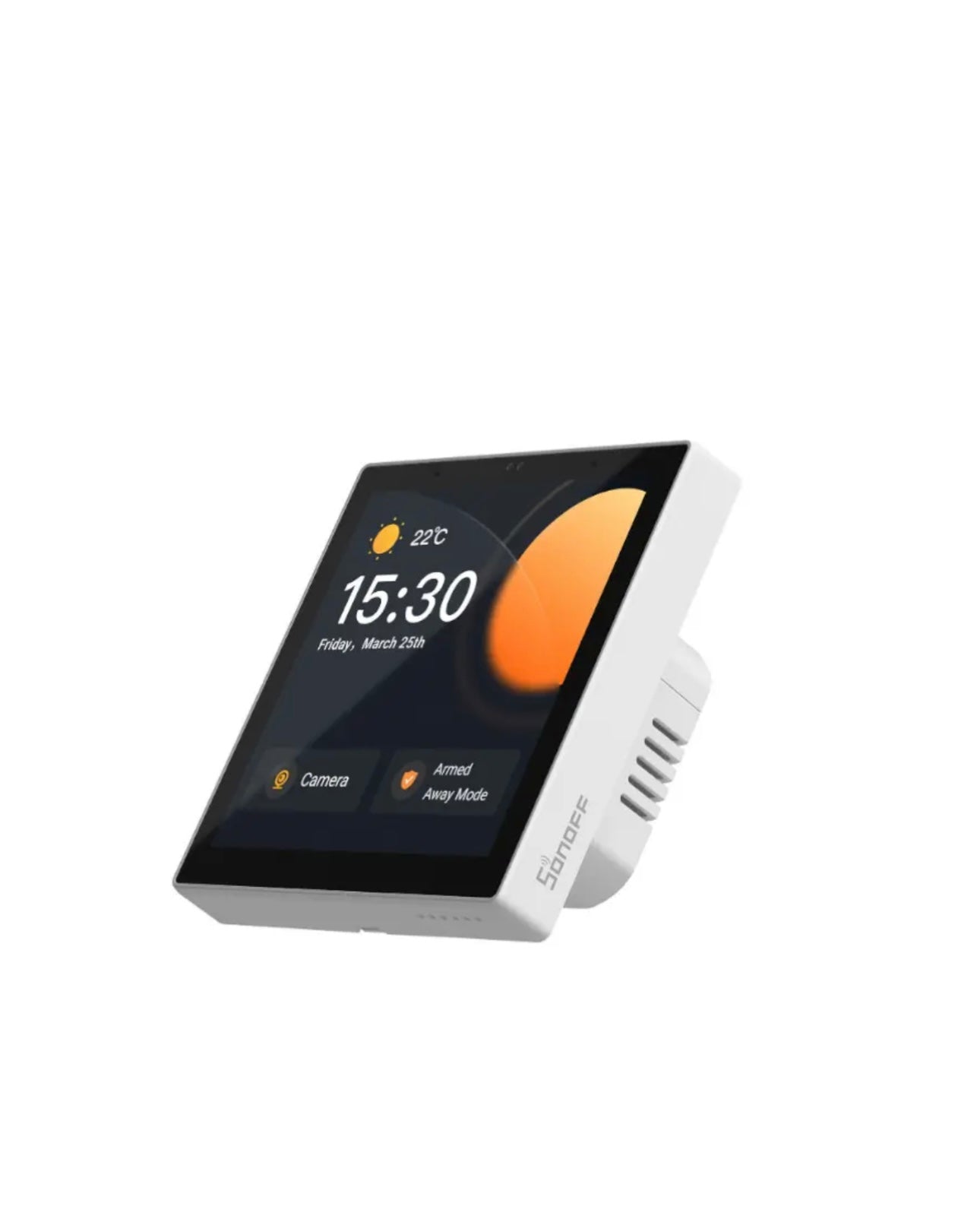

Sonoff NSPanel Pro is a smart home control panel.  An unlimited number of control devices, all in one panel.

Sonoff NSPanel Pro can quickly add Zigbee devices on the screen in batches. Standard Zigbee 3.0 protocol makes the connection more stable and the coverage wider. Supports all Sonoff Zigbee devices such as Zigbee Sensors, ZBMINI, and BASICZBR3.

Note:

*When power is lost, the QR code on the display must be scanned to activate every time. (No configurations are lost)

**NSPanel Pro does NOT have any physical buttons, only desktop control unit

***If you do choose to wall mount, please note the Size is 3×3 not 2×4.

• Specifications

  • Zigbee: IEEE 802.15.4 (Zigbee 3.0)
  • Wi-Fi: IEEE 802.11 b 2.4GHz
  • Input:100-240V AC 50/60Hz
  • Max Power Consumption: 5W MAX; 150mA
  • TFT Screen Size: 3.95″ (Capacitive Screen)
  • Screen Resolution: 480 x 480
  • MCU: PX30
  • CPU: 4-cores Cortex-A35
  • GPU: Mali-G31GPU
  • RAM: 2GB, DDR3
  • ROM: 8GB, eMMC 5.1
  • Certifications: CE/UKCA/ SRRC/RoHS
  • Shell Materials: PC V0+CRS+Toughened Glass
  • Dimension: 86x86x39.5mm
